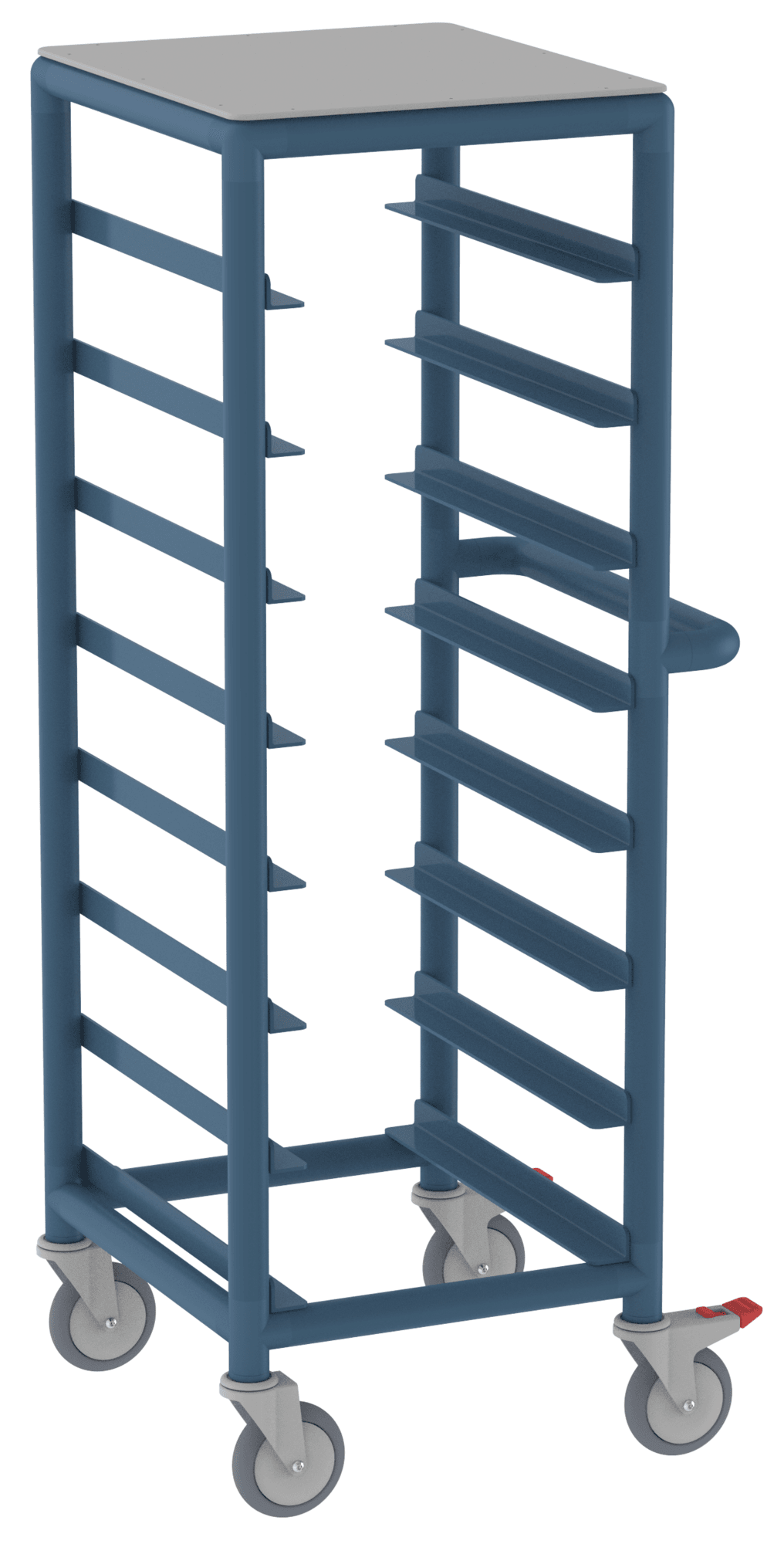

8 Tray Service Trolley with Solid Top

DATA SHEET

HEIGHT: 1470mm (including castors)

LENGTH: 495mm (595mm including handle)

WIDTH : 550mm

TROLLEY TOP: Solid

CASTORS: 2 x 125mm non braking / 2 x 125mm braking

CAPACITY: 8 x trays

TRAY SIZE: 550mm x 400mm (or built around your tray size)

TRAY RUNNERS: 145mm (height between tray runners)

CUSTOMISE: This product can be modified to suit your requirements

• Build around your trays

• Heights between tray runners

• Tray capacity (eg. hold up to 20 x trays)

• "C" section tray runners (anti-tilt)

• Combine flat and deep trays

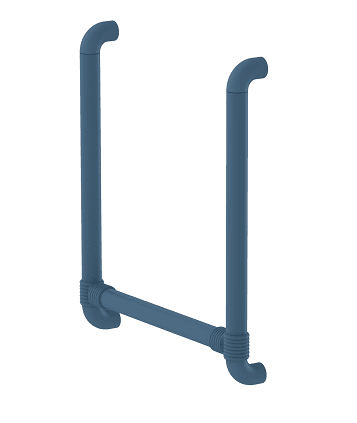

• Handles, each end (vertical and or horizontal)

• Tray stoppers

• Castor sizes and configuration

• Design your own trolley

BUILT WITH WORKPLACE HEALTH AND SAFETY FRONT OF MIND

THE MATERIALS USED IN CONSTRUCTION ARE STRONG, TOUGH AND SAFE

All of our Trolleys are easy to push and manoeuvre and are lightweight and strong.

Because the fittings we use are extruded from our own tooling, we can choose the materials that best suit their intended purpose. For example, tough Nylon composite fittings (which are only manufactured by Polymedic for our customers) are used on all Trolleys.

The materials used in the construction of our products are Hospital Grade and Lead Free, ensuring the safest possible product for your Facility.
